Uma ótima solução para expandir a capacidade de memória de uma máquina industrial e muito fácil de usar.
Características:
RoHS compliant products
Support Security command
Support S.M.A.R.T (Self-defined)
Fully compatible with devices and OS that support the IDE standard (pitch = 2.54mm)
Built-in ECC function assures high reliability of data transfer
Supports up to Ultra DMA Mode 4
Supports PIO Mode 6
Especificação do Produto:
Interface(connector): IDE 40P
Form Factor: IDE Flash Module
Flash Type: SLC
Capacity(GB): 8GB
Max. R/W Performance(MB/s)(Vary by density): Read: 57MB/s, Write: 38MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W: 0.9W
Op. Temp.(?): 0?~70?
Storage Temp.(?): - 40?~85?
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)

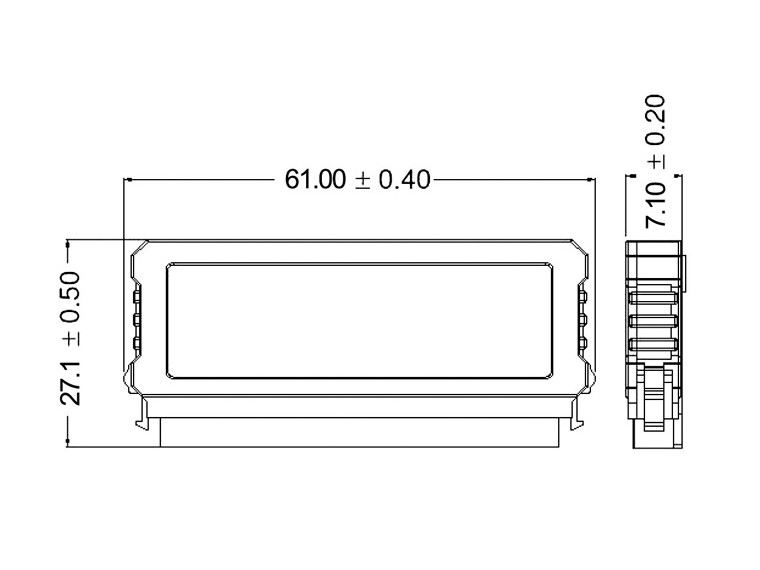

Dimensions(mm): 61.0mm × 27.1mm × 7.1mm (DOM40V--with housing)
MTBF(hours): 1,000,000 hours
Características:
RoHS compliant products
Support Security command
Support S.M.A.R.T (Self-defined)
Fully compatible with devices and OS that support the IDE standard (pitch = 2.54mm)
Built-in ECC function assures high reliability of data transfer
Supports up to Ultra DMA Mode 4
Supports PIO Mode 6
Especificação do Produto:
Interface(connector): IDE 40P
Form Factor: IDE Flash Module
Flash Type: SLC
Capacity(GB): 8GB
Max. R/W Performance(MB/s)(Vary by density): Read: 57MB/s, Write: 38MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W: 0.9W
Op. Temp.(?): 0?~70?
Storage Temp.(?): - 40?~85?
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)
Dimensions(mm): 61.0mm × 27.1mm × 7.1mm (DOM40V--with housing)
MTBF(hours): 1,000,000 hours
Equipamentos Compatíveis.
