Pronta entrega no Brasil
Uma ótima solução para expandir a capacidade de memória de uma máquina industrial e muito fácil de usar.
Características:
- RoHS compliant products
- Support Security command
- Support S.M.A.R.T (Self-defined)
- Fully compatible with devices and OS that support the IDE standard (pitch = 2.54mm)
- Built-in ECC function assures high reliability of data transfer
- Supports up to Ultra DMA Mode 4
- Supports PIO Mode 6
Especificação do Produto
| Interface(connector) | IDE 40P |
|---|---|
| Form Factor | IDE Flash Module |
| Flash Type | SLC |
| Capacity(GB) | 8GB |
| Max. R/W Performance(MB/s)(Vary by density) | Read: 57MB/s, Write: 38MB/s |
| Op. Voltage(V) | 3.3V±5% or 5V±10% |
| Power Consumption(W | 0.9W |
| Op. Temp.(℃) | 0℃~70℃ |
| Storage Temp.(℃) | - 40℃~85℃ |
| Humidity(%) | 0%~95% |
| Shock(G) | 1500G, 0.5ms, 3 axis |
| Vibration(Hz/G) | 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency) |

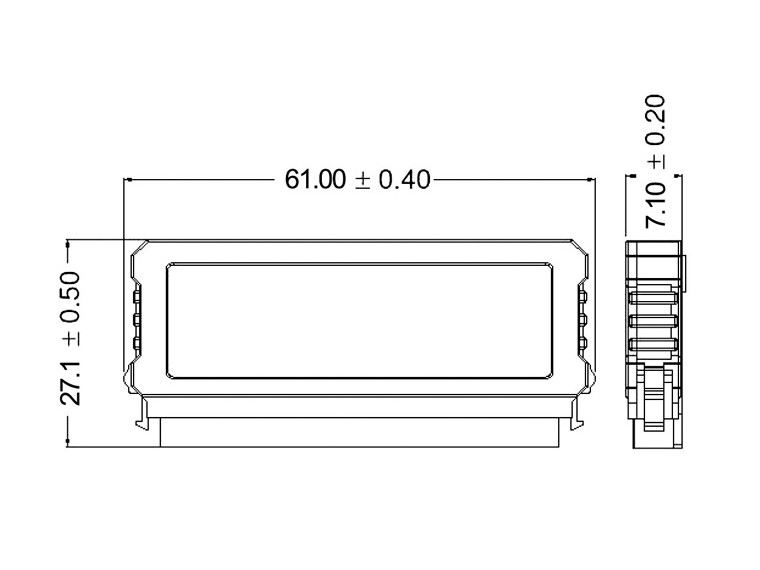

| Dimensions(mm) | 61.0mm × 27.1mm × 7.1mm (DOM40V--with housing) |
| MTBF(hours) | 1,000,000 hours |
